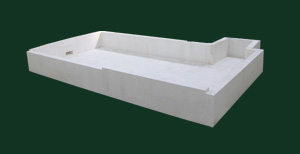

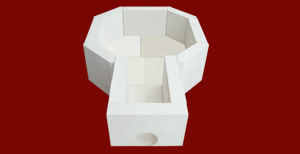

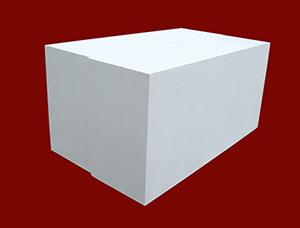

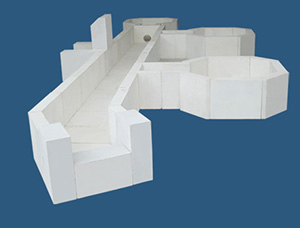

According to project & requirement, electro-cast AZS ZAC refractory bricks & blocks for glass or glaze furnaces.
Electro-fused AZS bricks & blocks are manufactured by mixing melted zircon and alumina in electric furnaces, casted and annealed in annealing furnaces.
AZS ZAC Refractory bricks are main stucture materials of glass furnaces since it can work under severe conditions during process of melting glass, does not contaminate with liquid glass, has high resistent to corrosion in contact area of melting glass.
Electro-cast AZS ZAC Refractory Bricks mainly used for glass and frit furnaces as lining bricks, side walls, working pool, spout brick, corner bricks.
| Al2O3 | max (%) | 35-40 |
|---|---|---|
| ZrO2 | min (%) | 33-40 |
| SiO2 | min (%) | 20-23 |
| Fe2O3 | max (%) | 0.06 |
| Na2O | max (%) | 1.5 |
| TiO2 | max (%) | 0.01 |
| Bulk density | kg/m3 | 3027–3076 |
|---|---|---|
| Apparent porosity | (%) | 19–21.5 |
| Cold crushing | MPa | 58.6–75.8 |
| Thermal expansion | (1000°C) | 0.80 |
| Exudation temp. of glass phase | (°C) | 1400 |
| Corrocion resistance of glass melt | (mm/24h) | 1.6-1.3 |
| Baddeleyite | (%) | 32-40 |
|---|---|---|
| Glass phase | (%) | 21-17 |
| α‐corundum | (%) | 47-43 |
Note: Chemical & Physical specifications above are avarage values. It may change according to manufacturing and project.
Applications
- Burner blocks
- Front cover of glass furnaces
- Furnace inspection blocks
- Glass furnace melting pool
- Glass furnace superstructure
- Glass furnace working pool
- Melting glass plungers
- Spout bricks
- Nozzles
Features
- Excellent performance and strong resistance agains erosion of liquid glass in contact area.
- Provides smooth glass surface, protects glass from scratches.
- Many kind of bricks are ready to use pre-cast shaped.
Availability
- Electro-fused, ready to use bricks & blocks.
- In our section, we are cutting, drilling, engraving bricks & blocks according to customer requirements.
